🔦 Public Notes – Plain Language Explanation

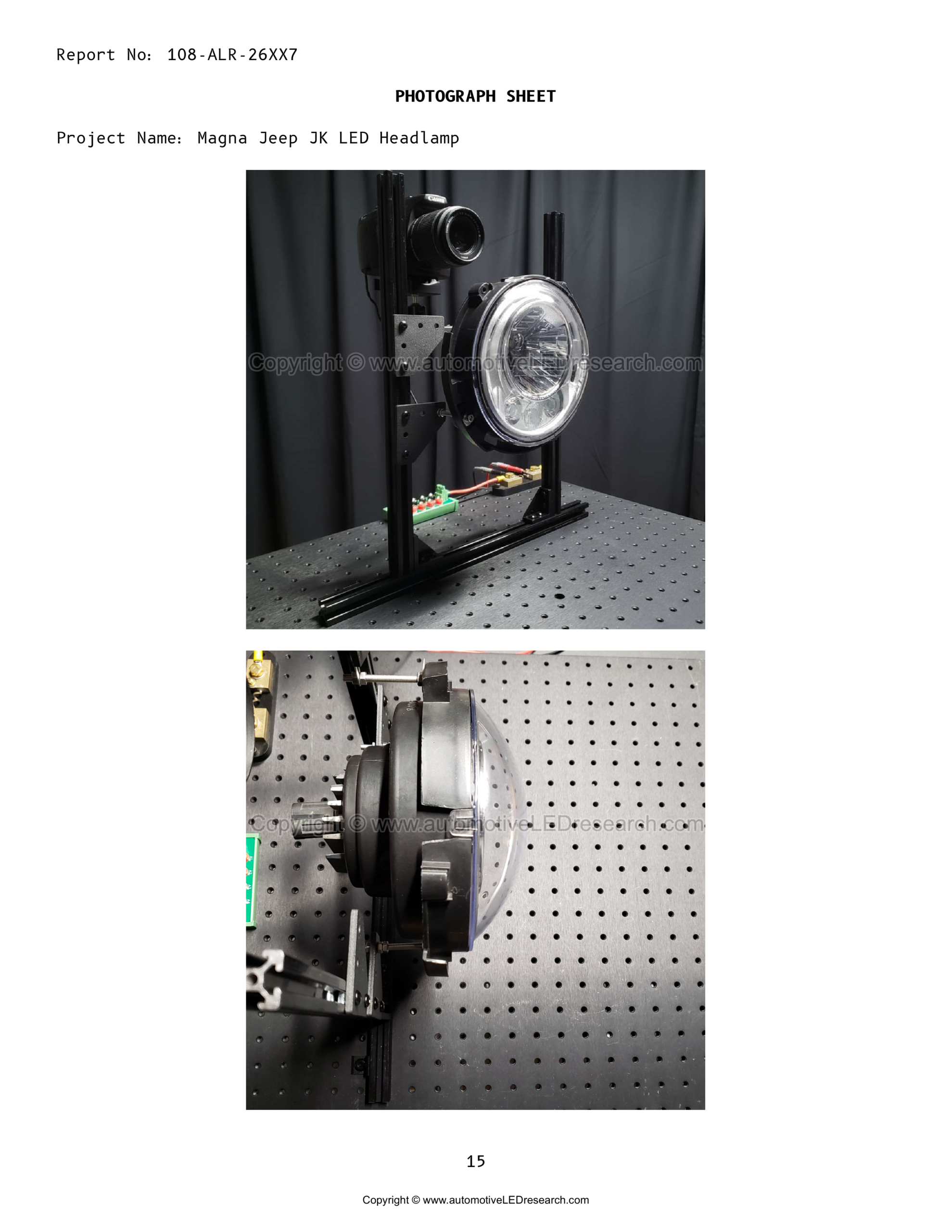

Device Tested: Magna Jeep JK 17 LH LED Headlamp (x1)
Date Tested: April 29, 2026
Part Numbers: n/a
Standard Referenced: FMVSS 108

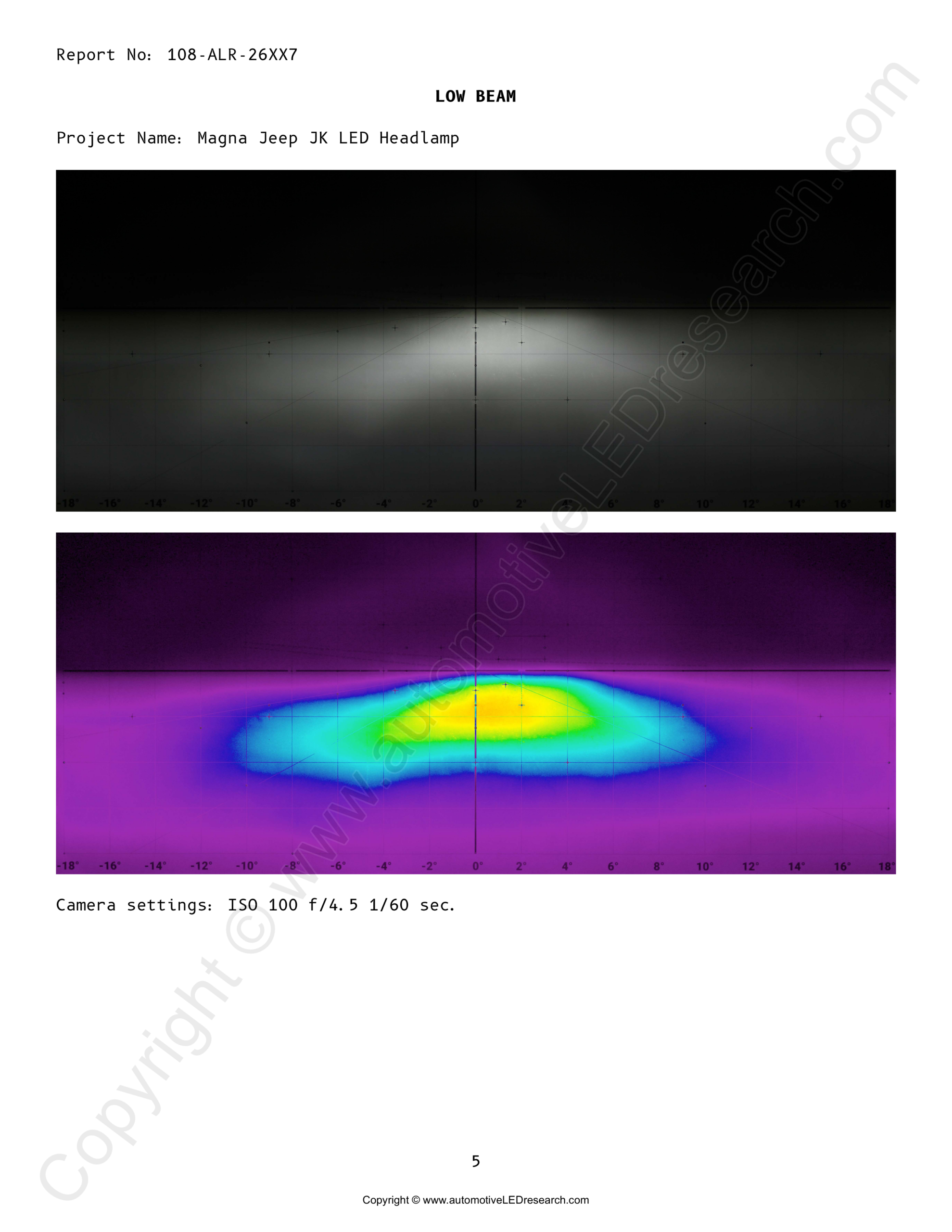

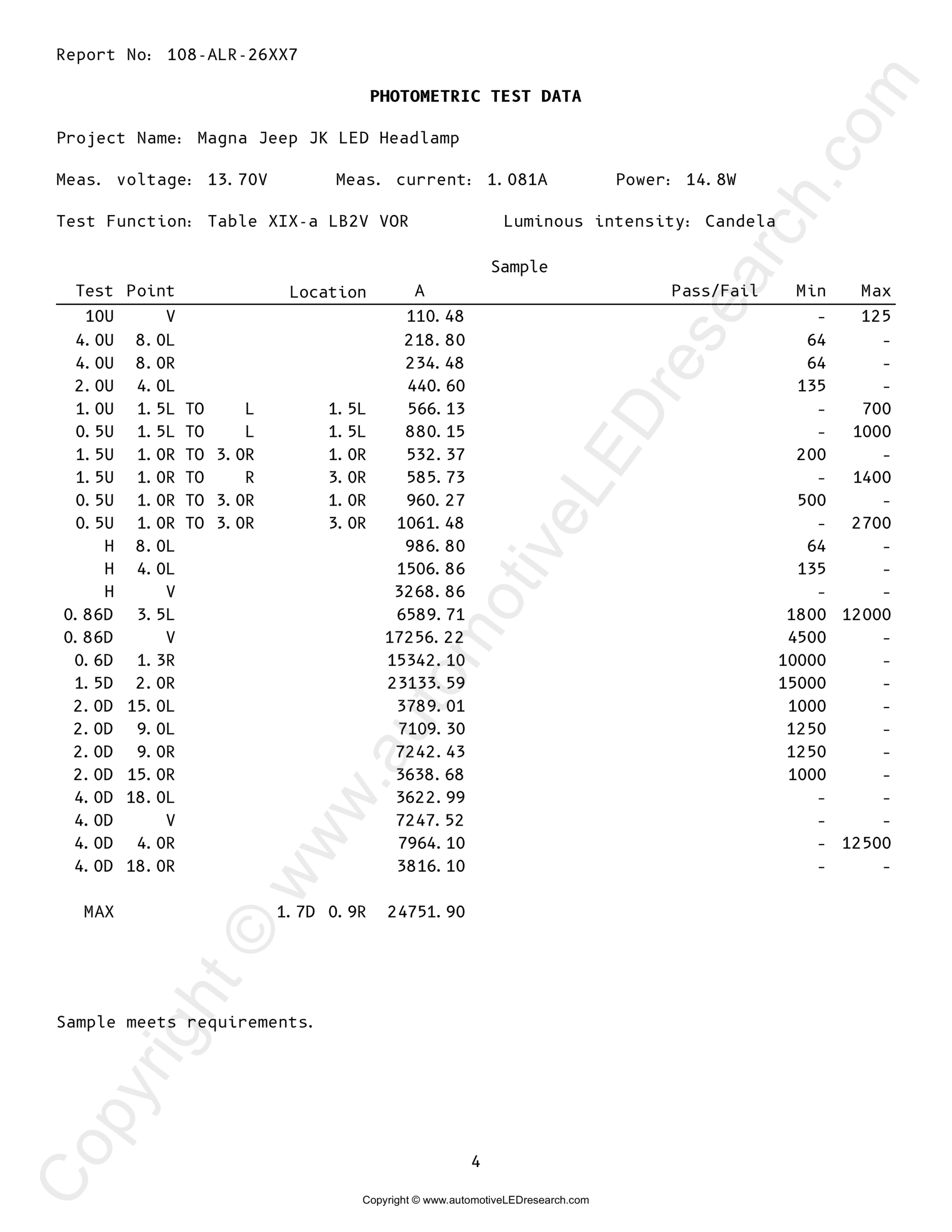

✅ Low Beam – PASS
• Meets all low-beam photometry requirements.

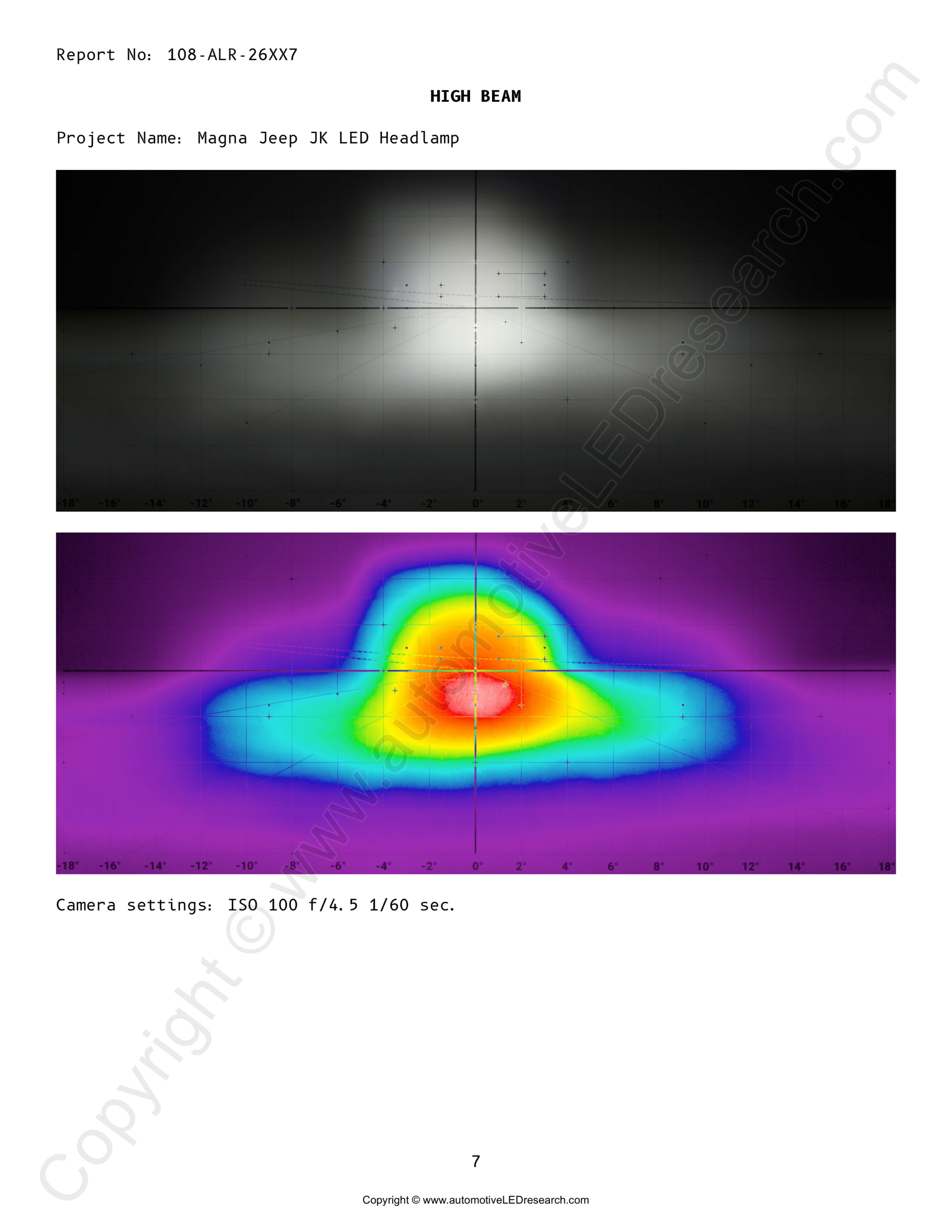

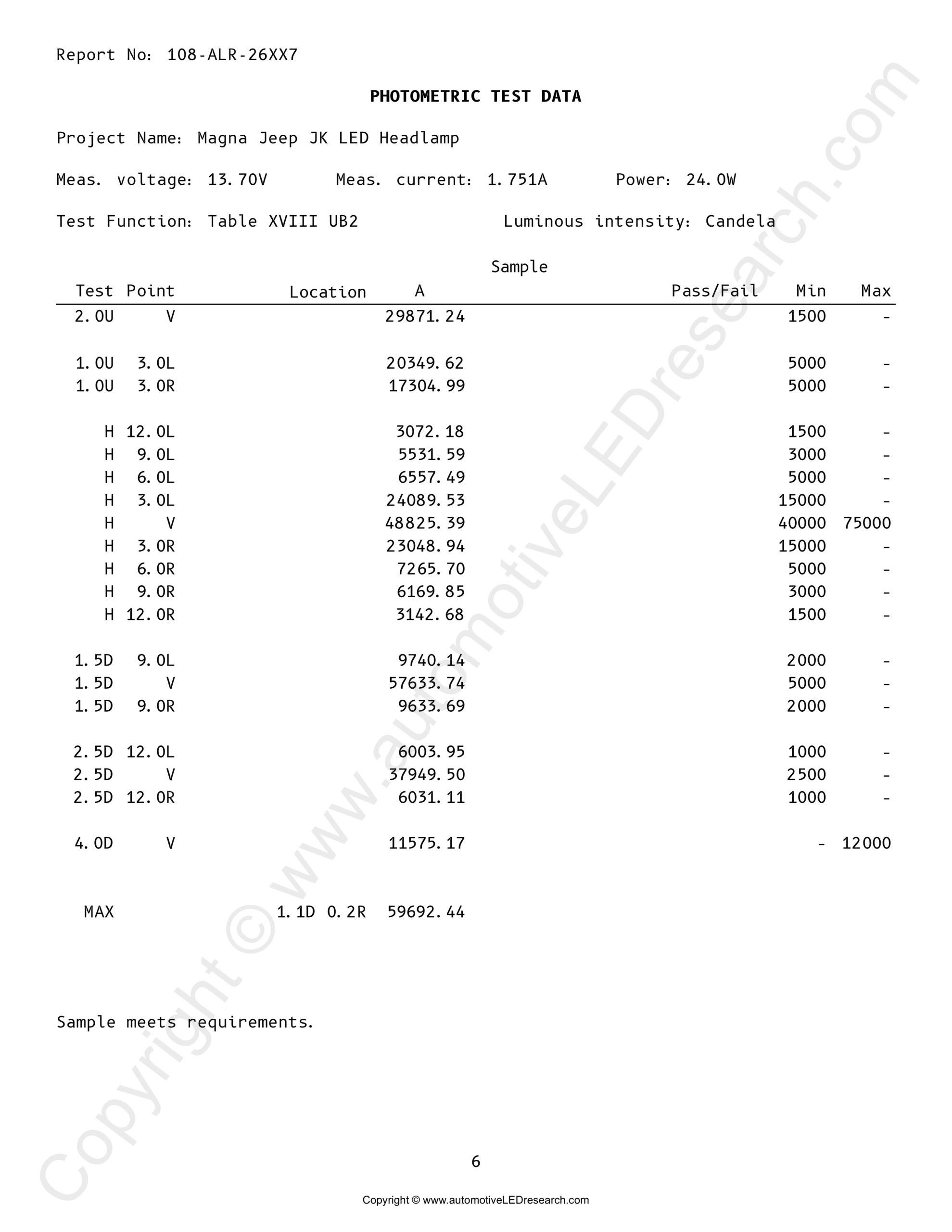

✅ High Beam – PASS
• Meets all low-beam photometry requirements.

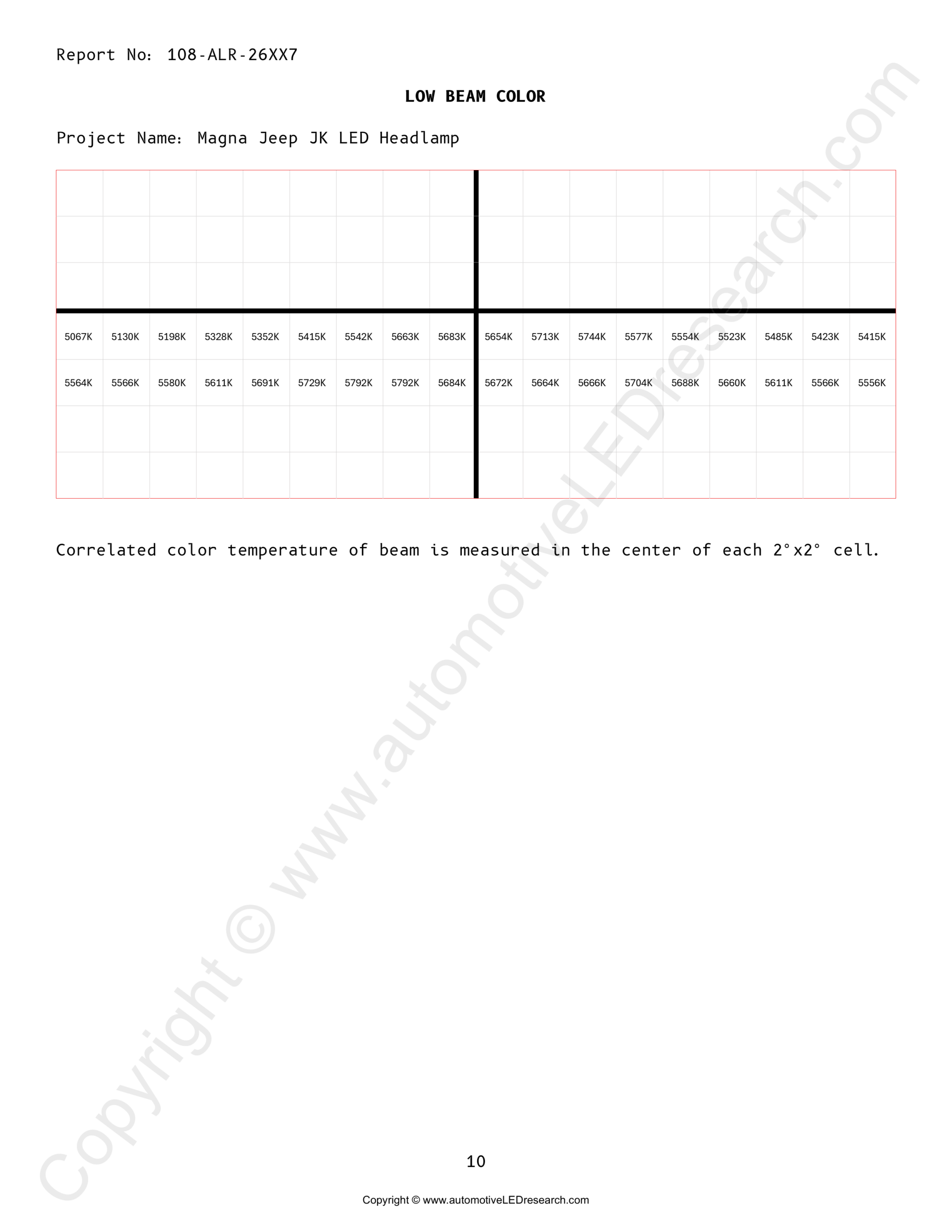

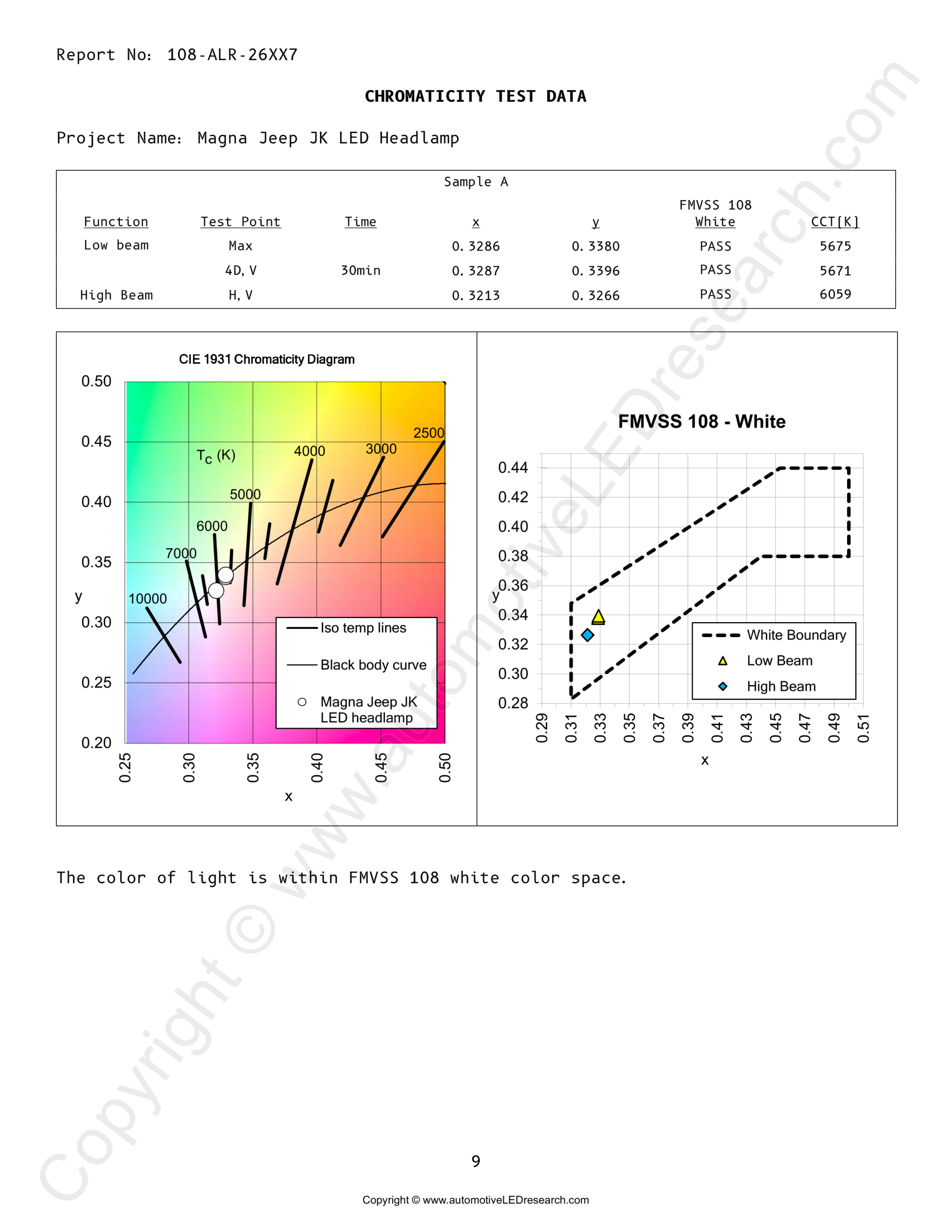

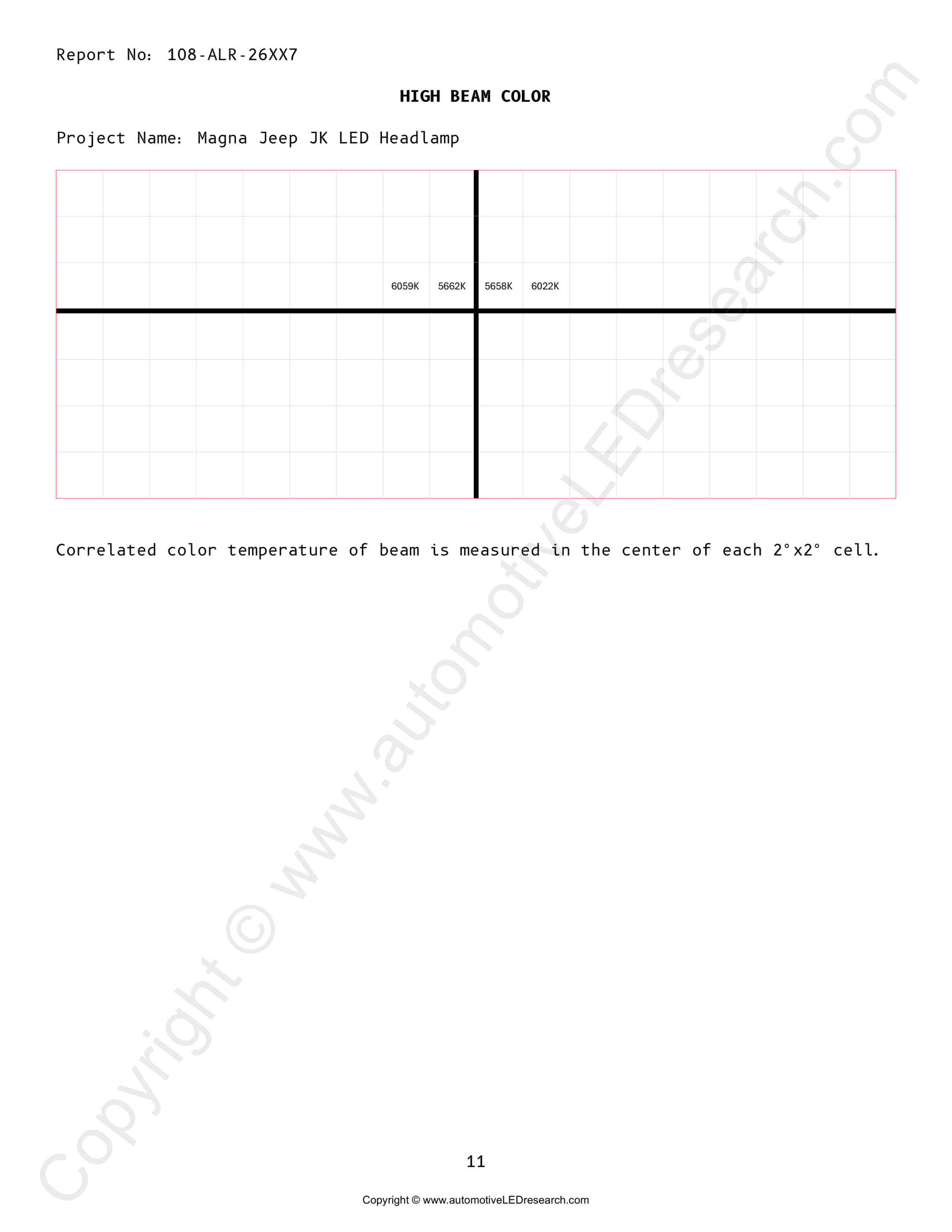

✅ Color Test – PASS
• Color measurements were within the white zone, producing a beam that meets the standard.
📘 Frequently Asked Questions
If you want a deeper explanation of how the lamps were tested or how to interpret the photometric data, the two decks below cover the full process:
Part 1 – How Headlamps Are Tested
CLICK HERE
Part 2 – How to Read the Test Results
CLICK HERE

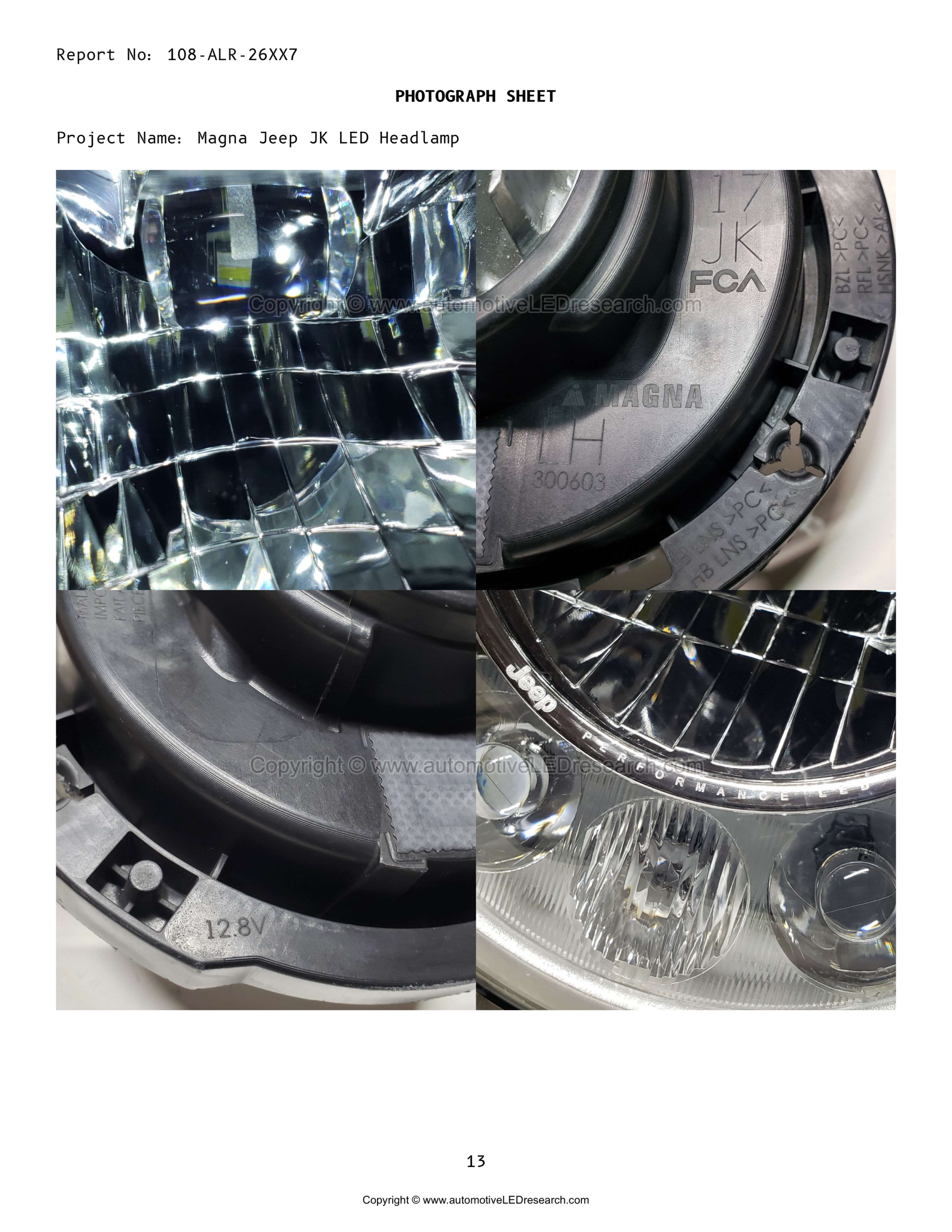

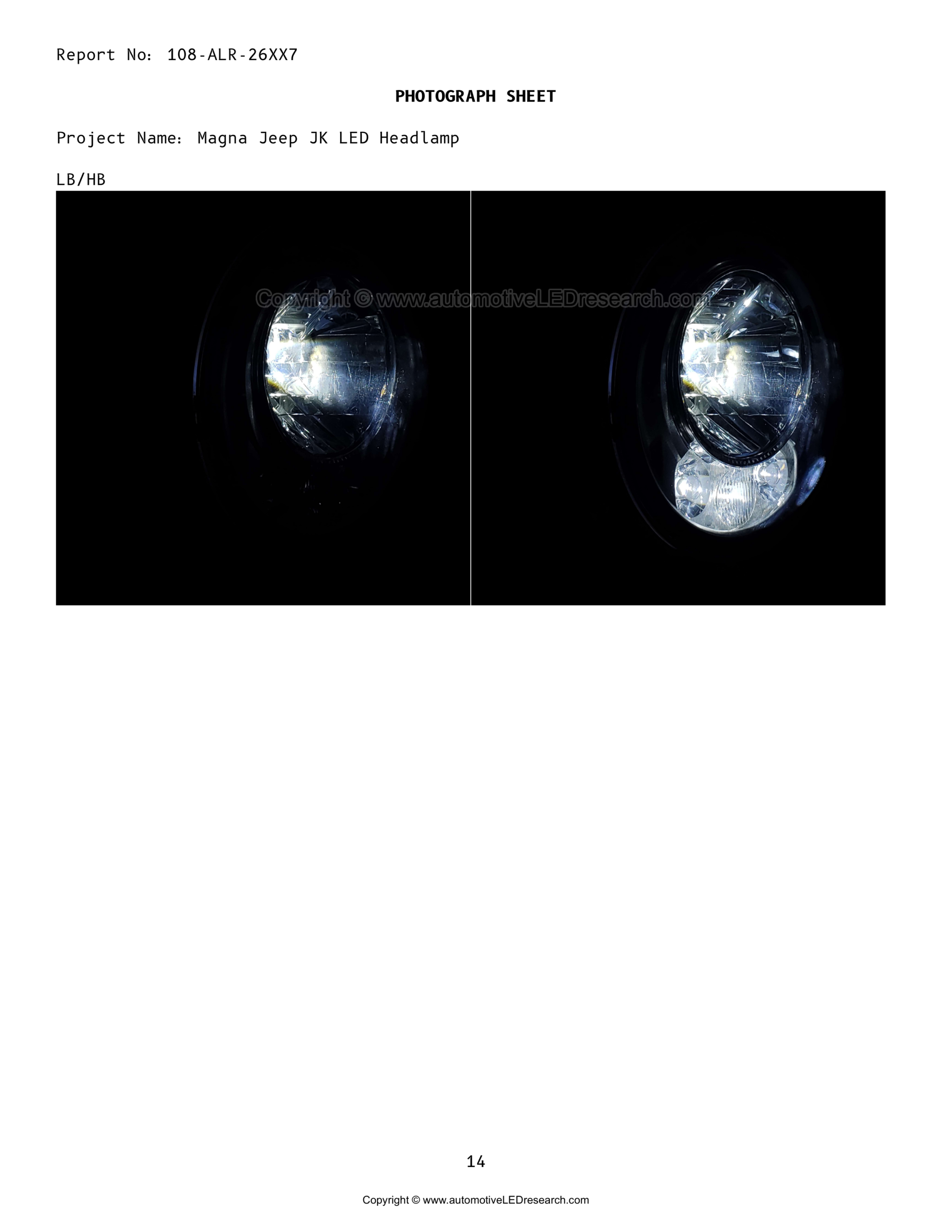

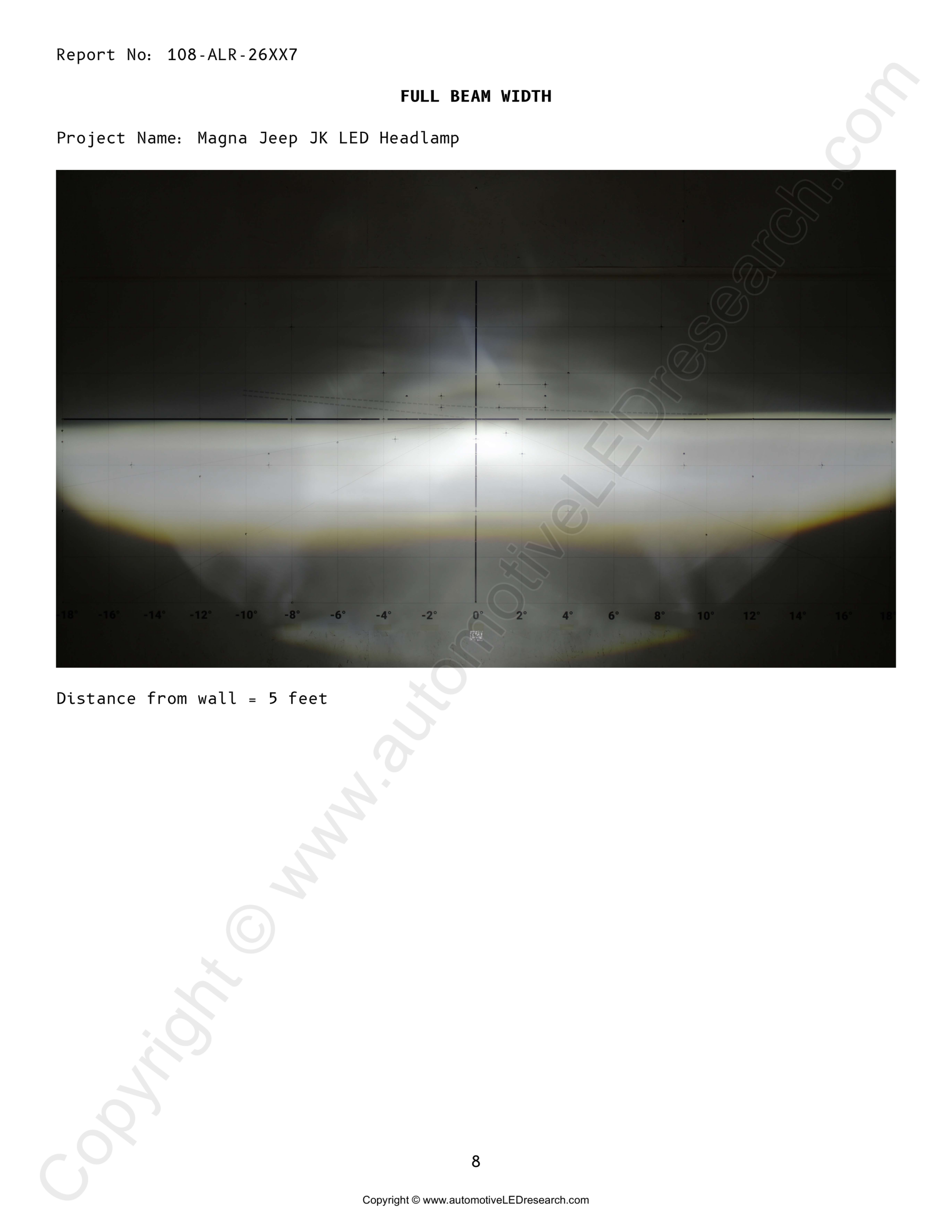

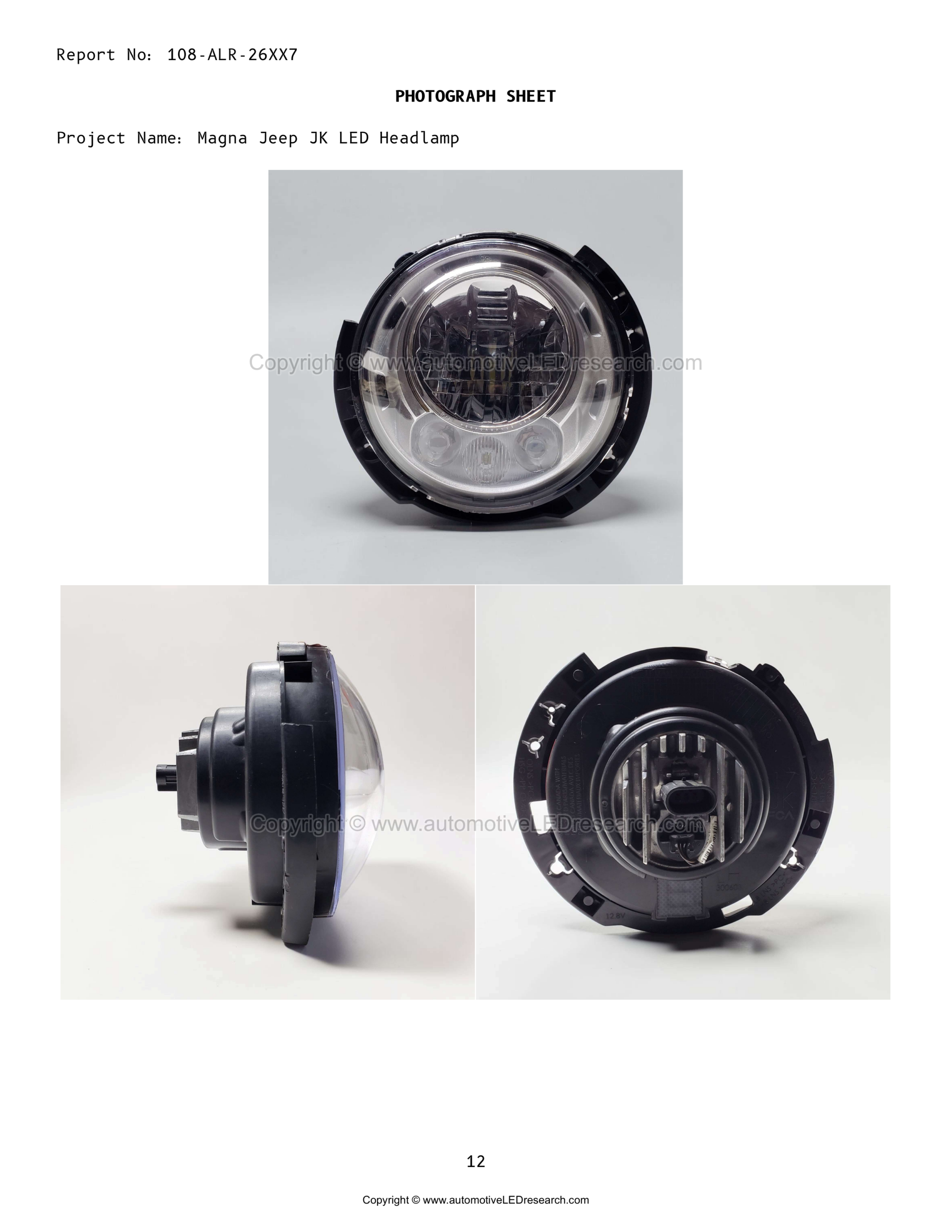

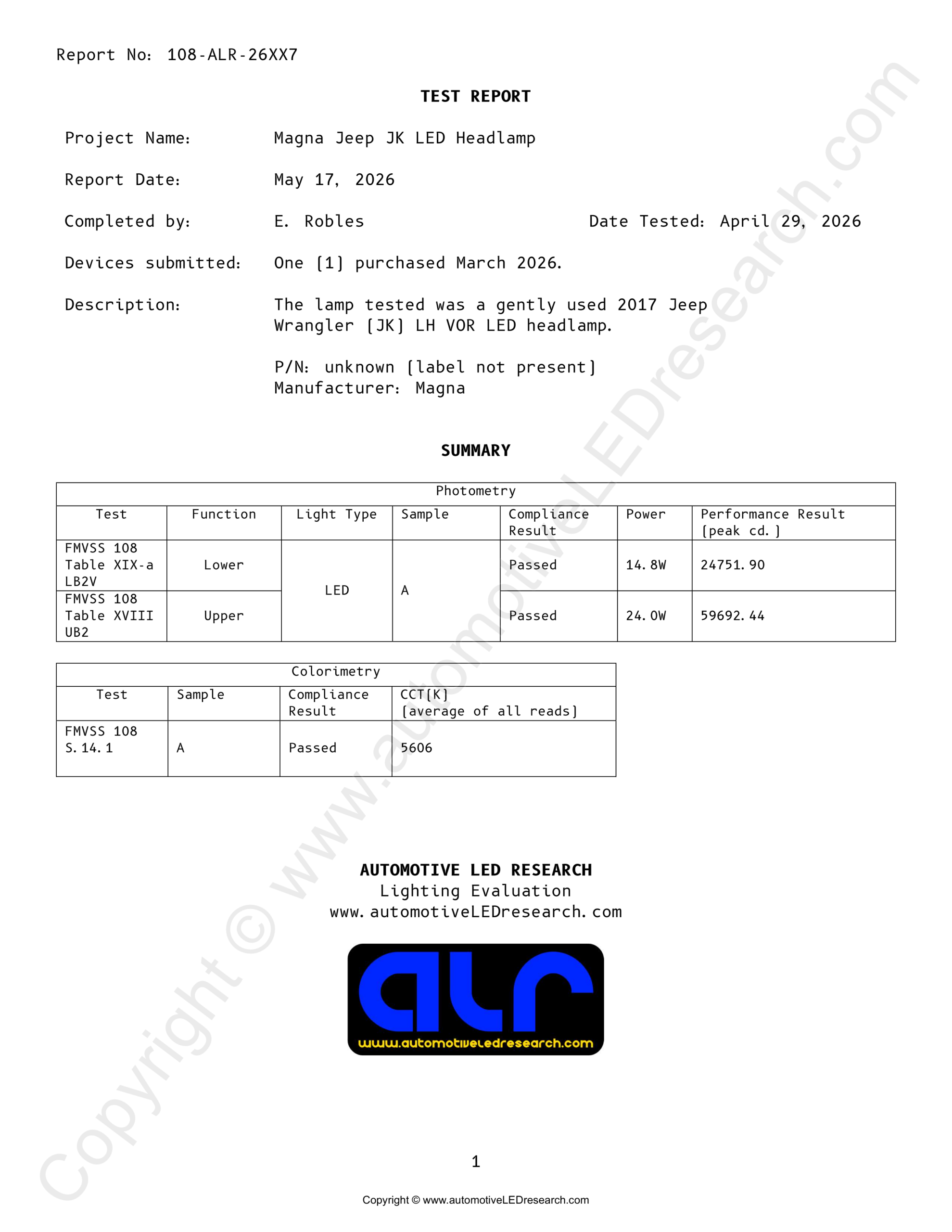

CLICK ON THE IMAGE BELOW to view the photometric test report
