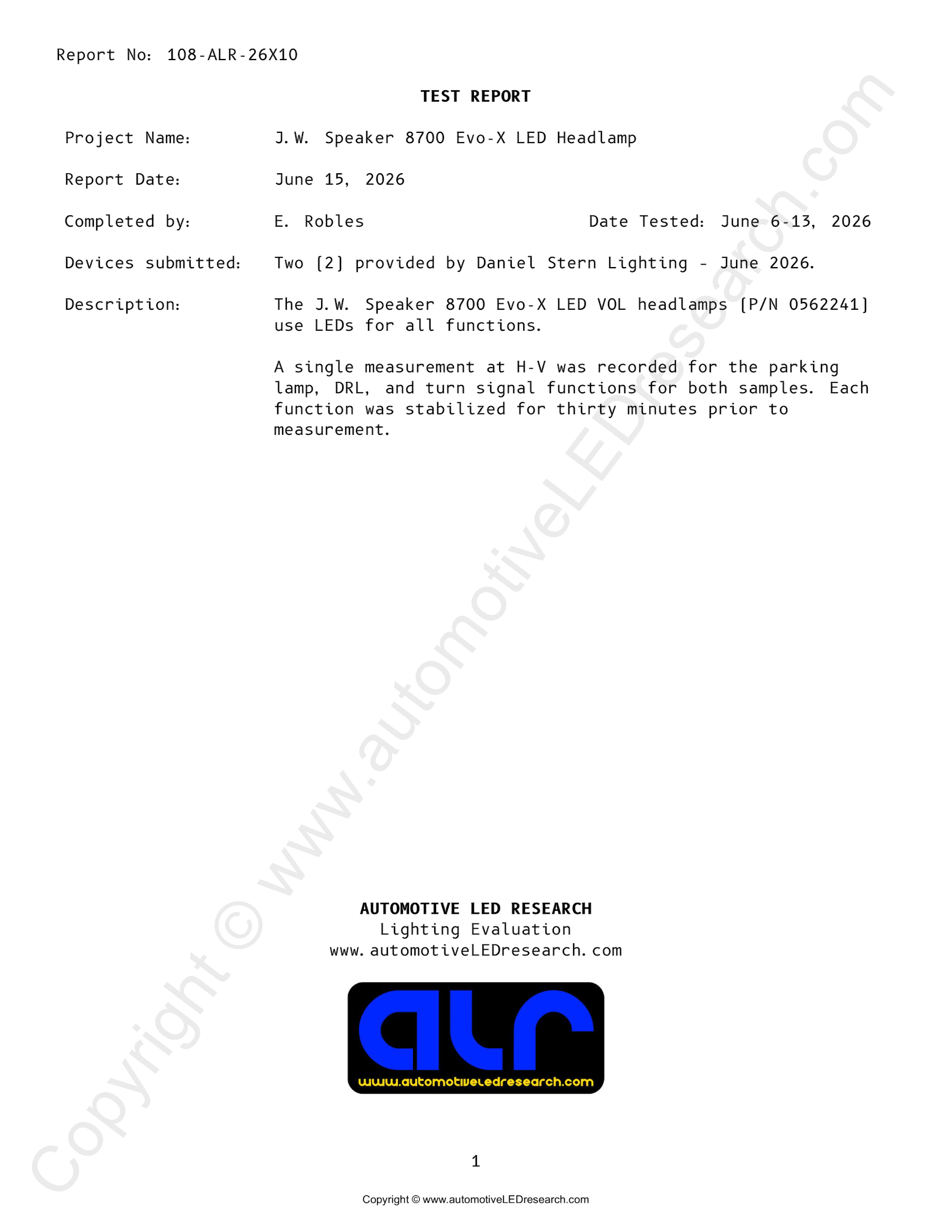

🔦 Public Notes – Plain Language Explanation
Device Tested: J.W. Speaker 8700 Evo-X LED Headlamp (x2)
Date Tested: June 6-13, 2026

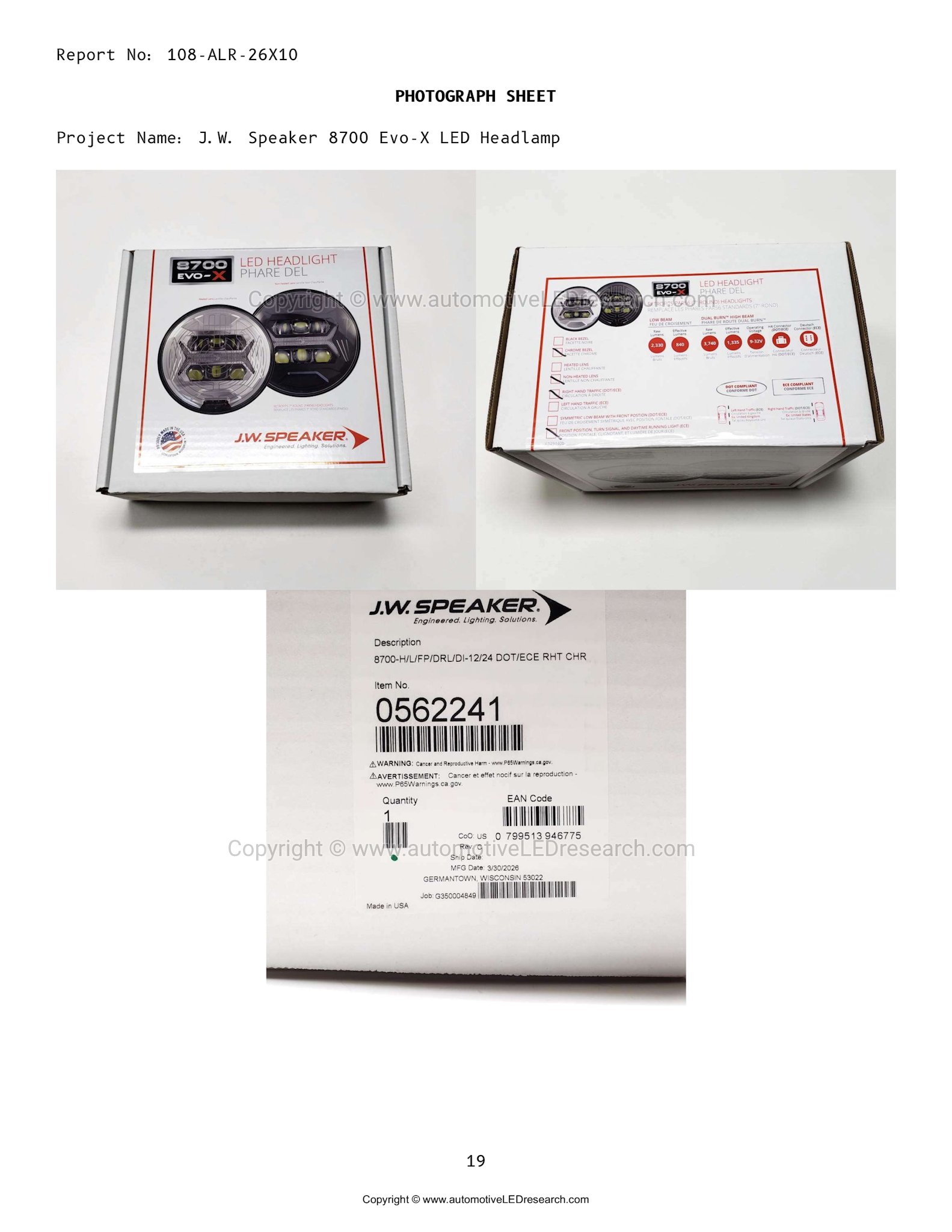

Part Number: 0562241
Standard Referenced: FMVSS 108

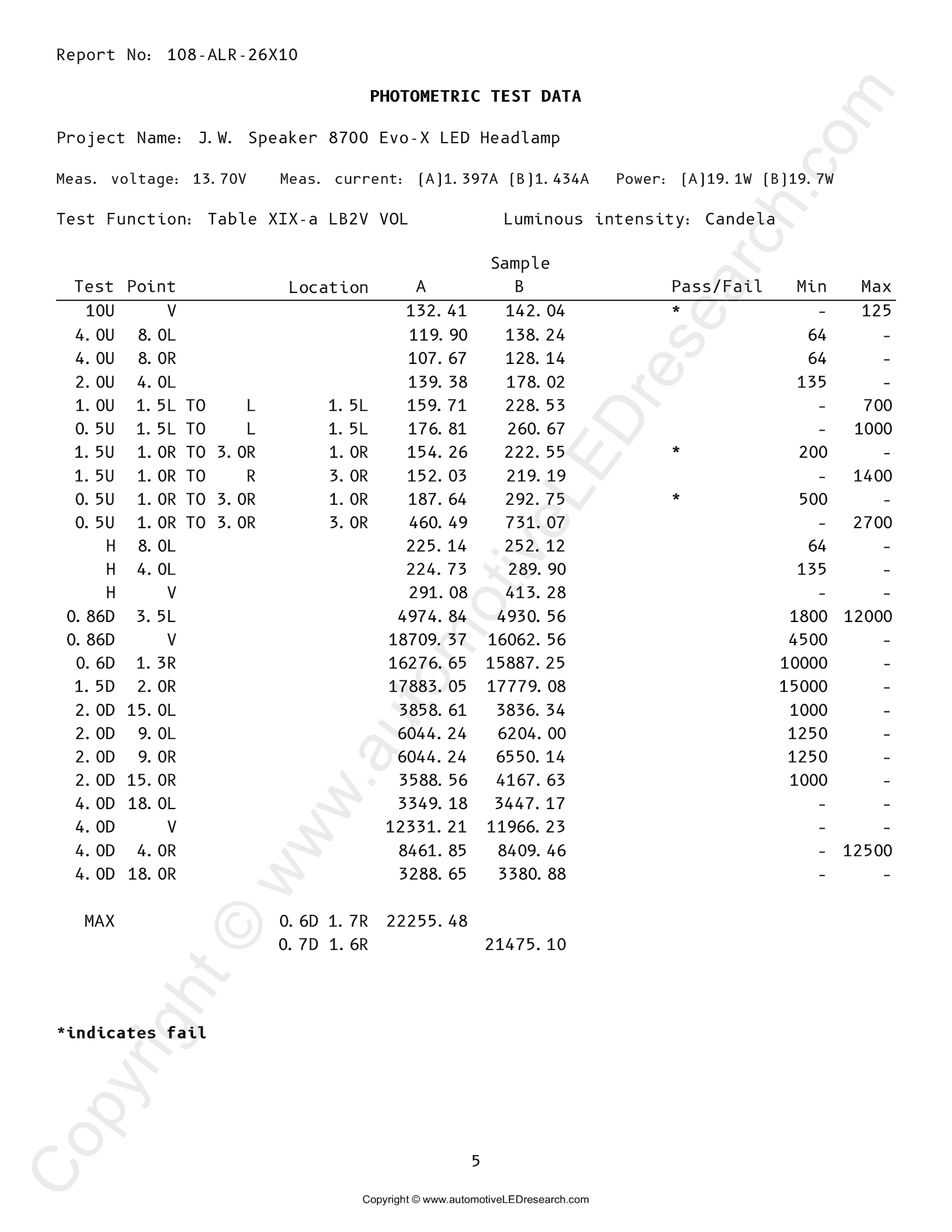

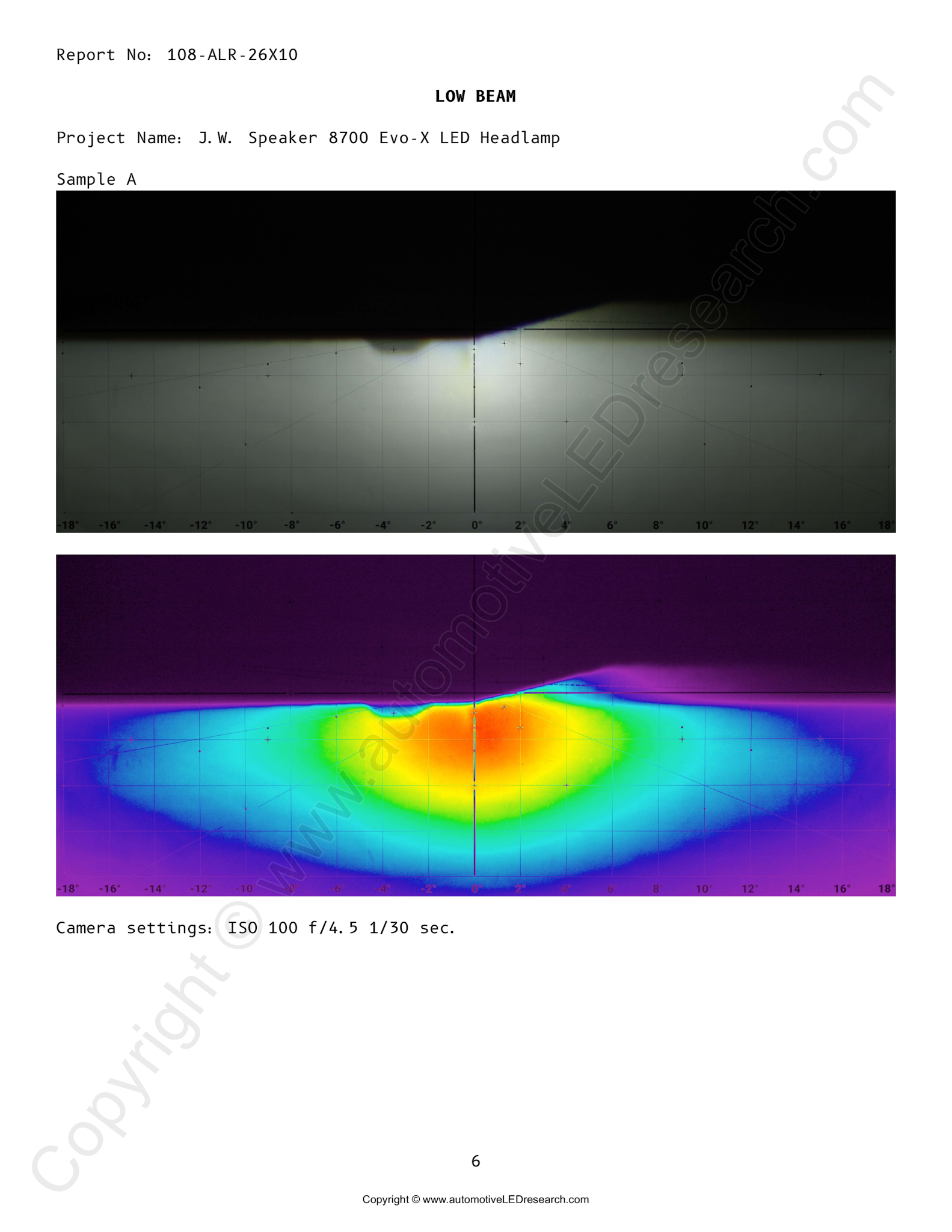

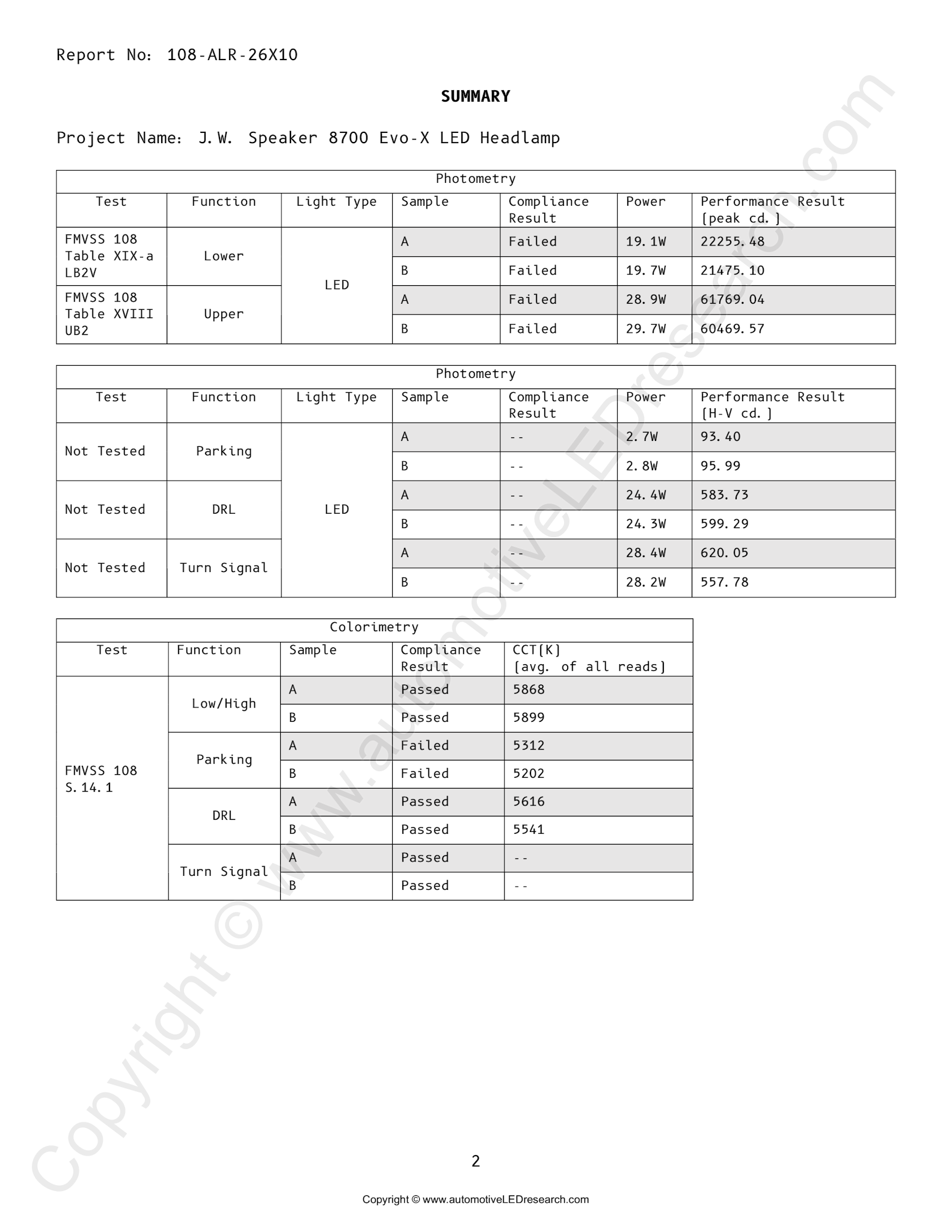

❌ Low Beam – FAIL
• Slightly too bright at a high upward angle, which increases light scatter in fog, rain, or snow.
• Not bright enough at an upper right-side region, just above the cutoff, reducing right-side sign visibility at 50-100 m.

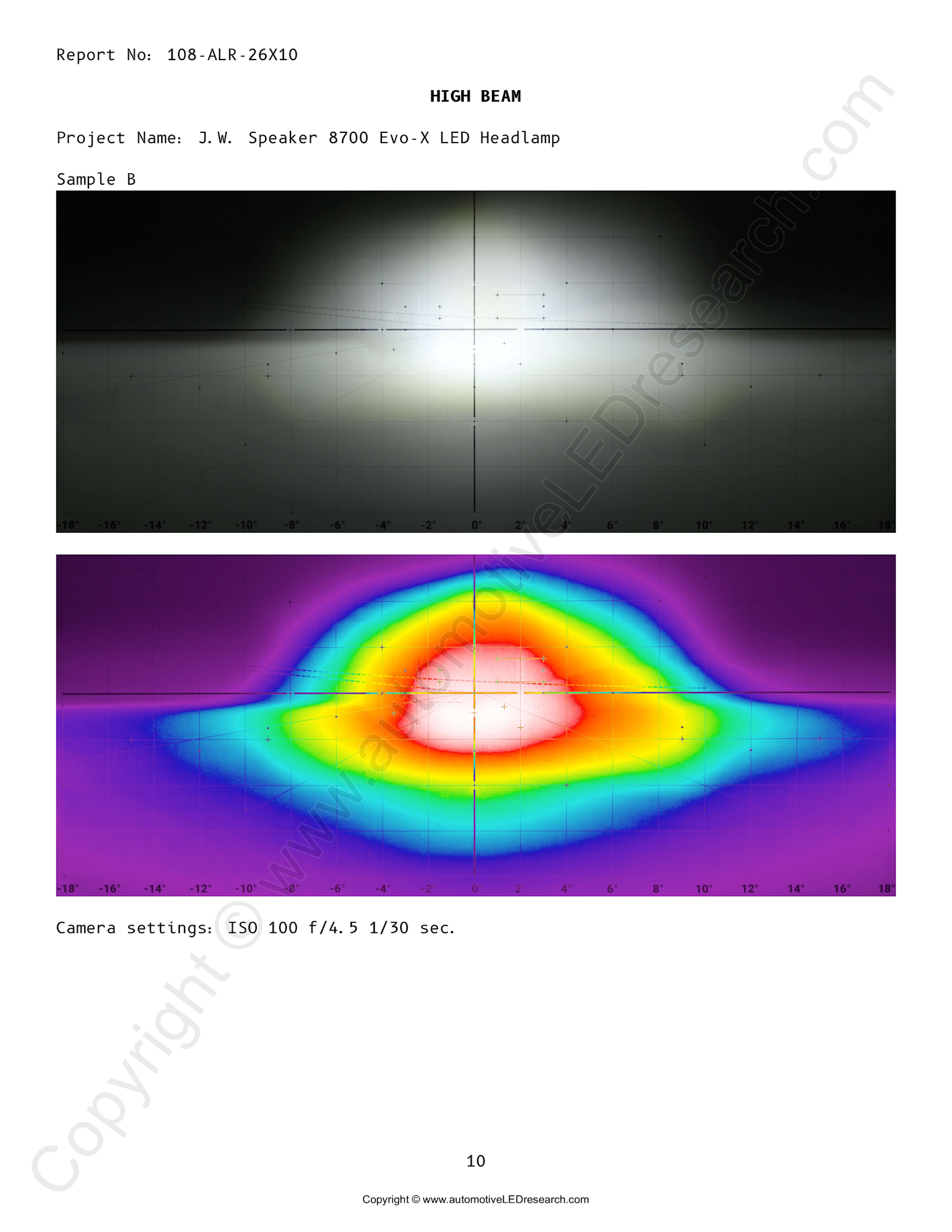

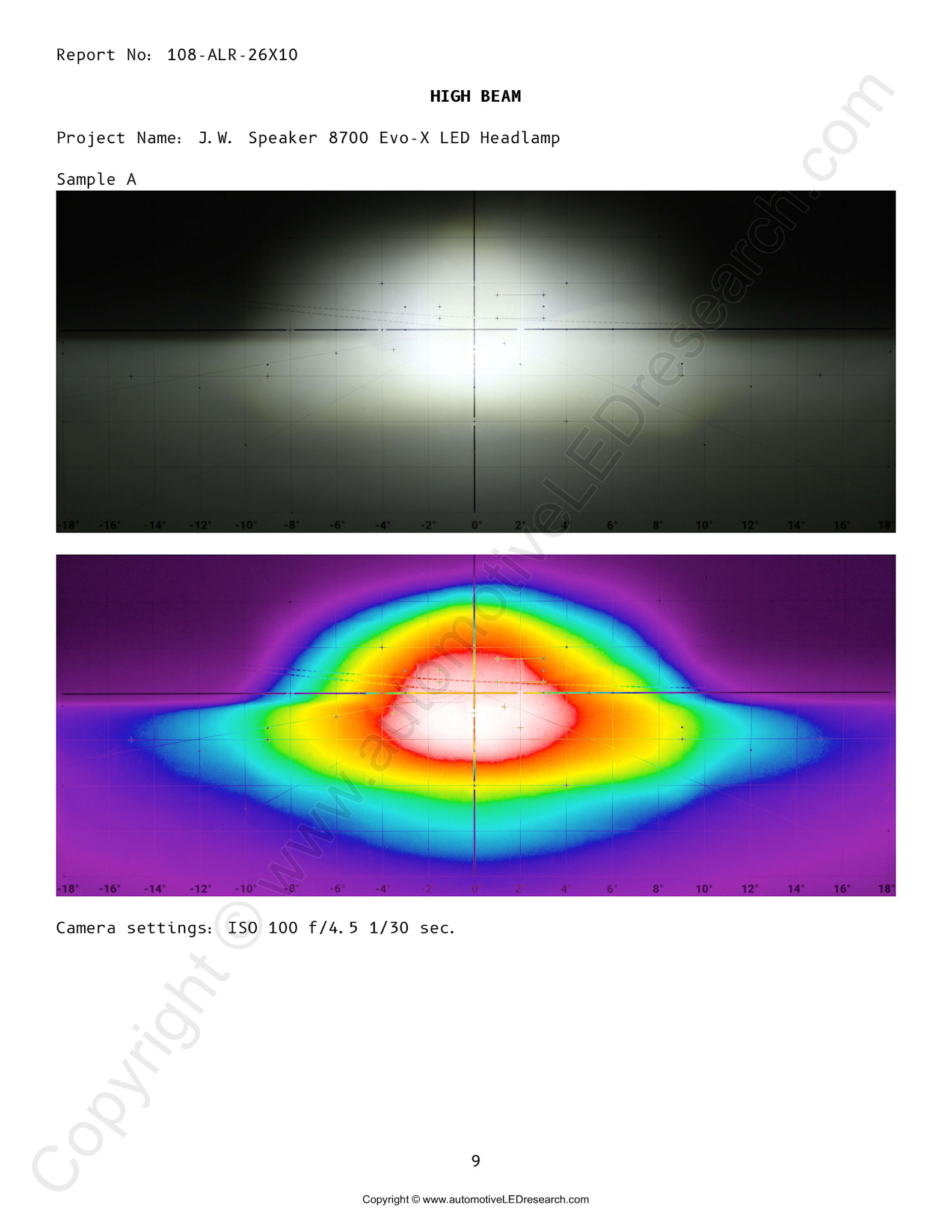

❌ High Beam – FAIL
• Not bright enough far off to the left at distance, reducing wide-beam coverage toward the roadside.

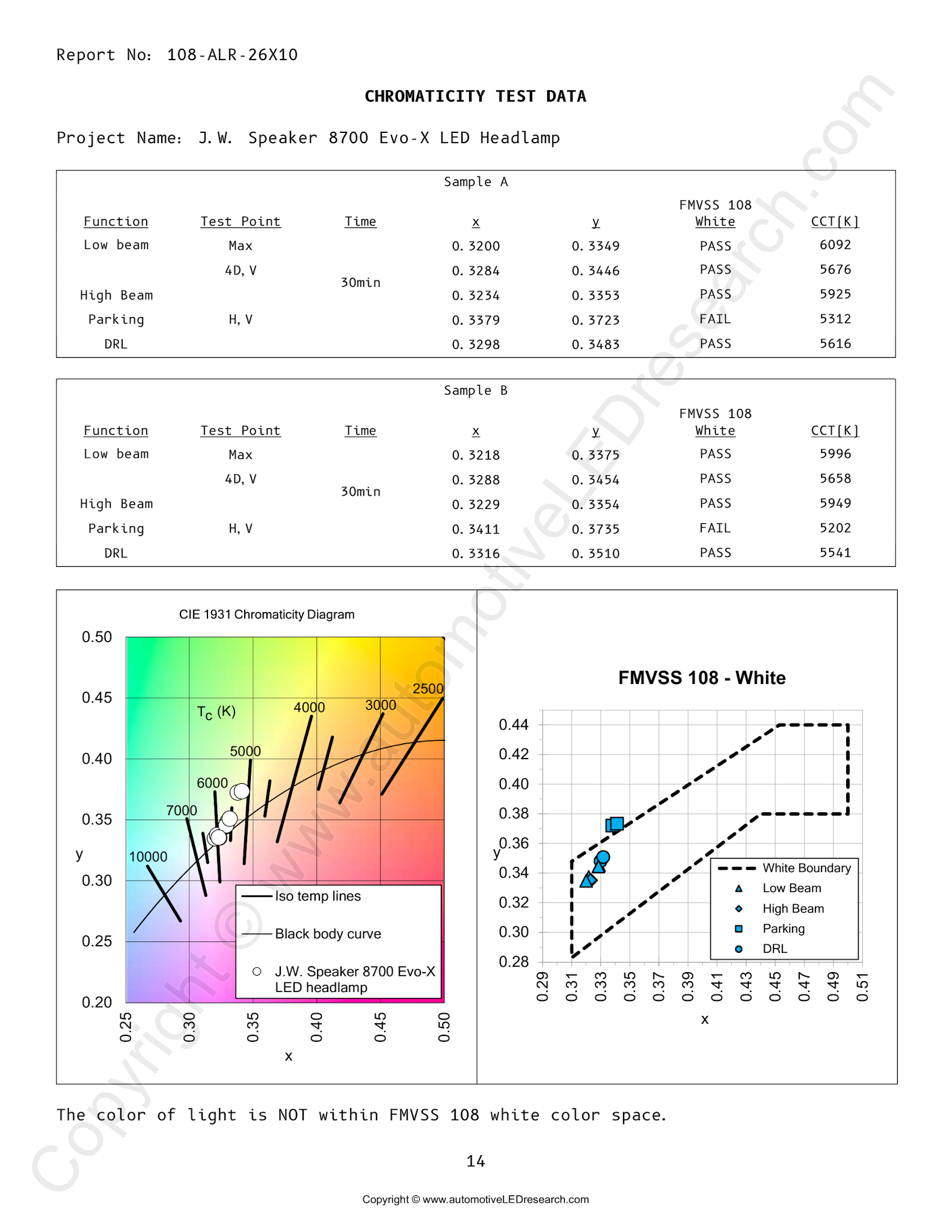

❌ Color Test – PASS

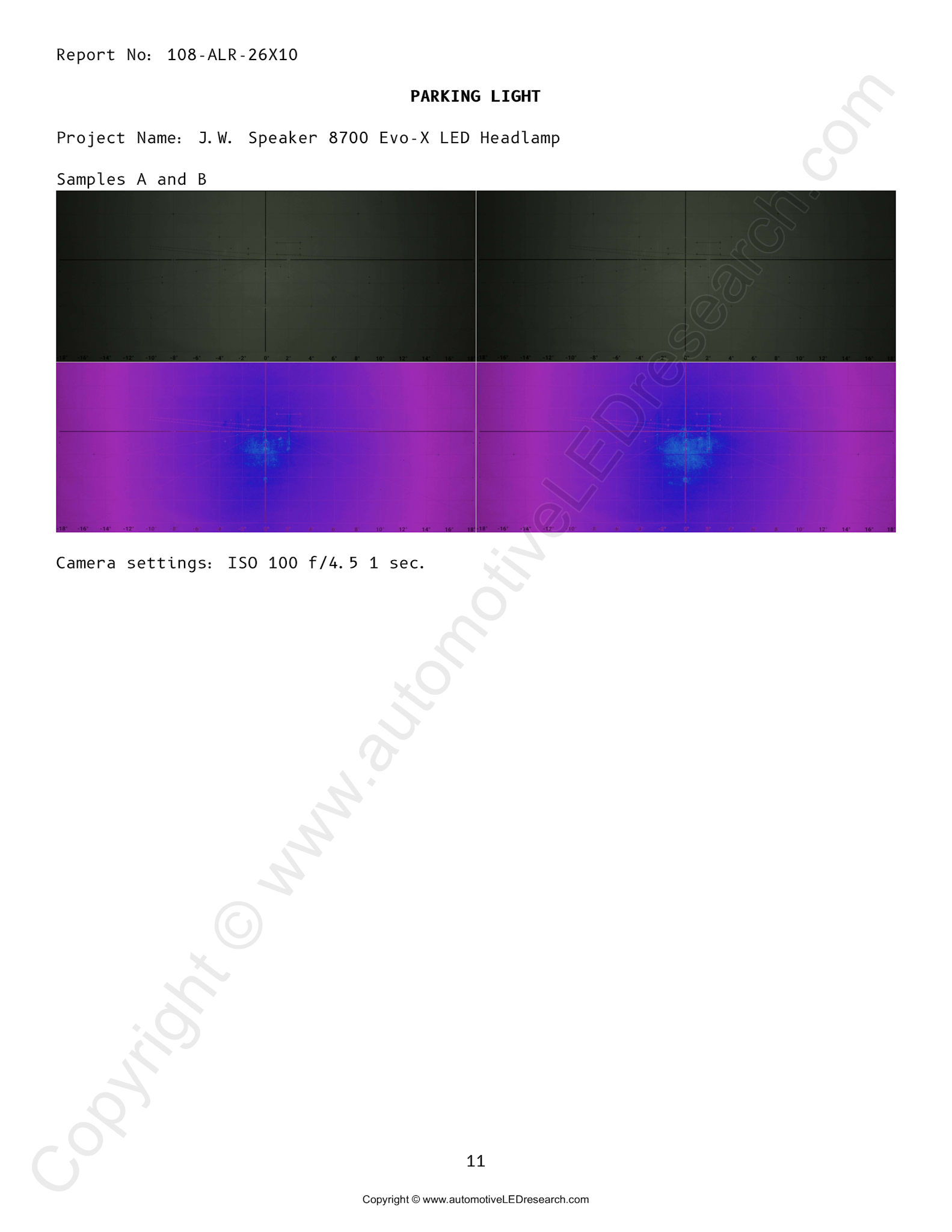

• Color measurements for the parking light were outside the white zone, producing a beam shifted into the green region.
⚠️ Disclaimer
Any failed test points shown in this summary may pass in official compliance testing. FMVSS 108 allows a 0.25° re‑aim at each test point, but we do not apply that allowance in our testing, so results can appear slightly stricter.
🔍 What I Noticed During the Test

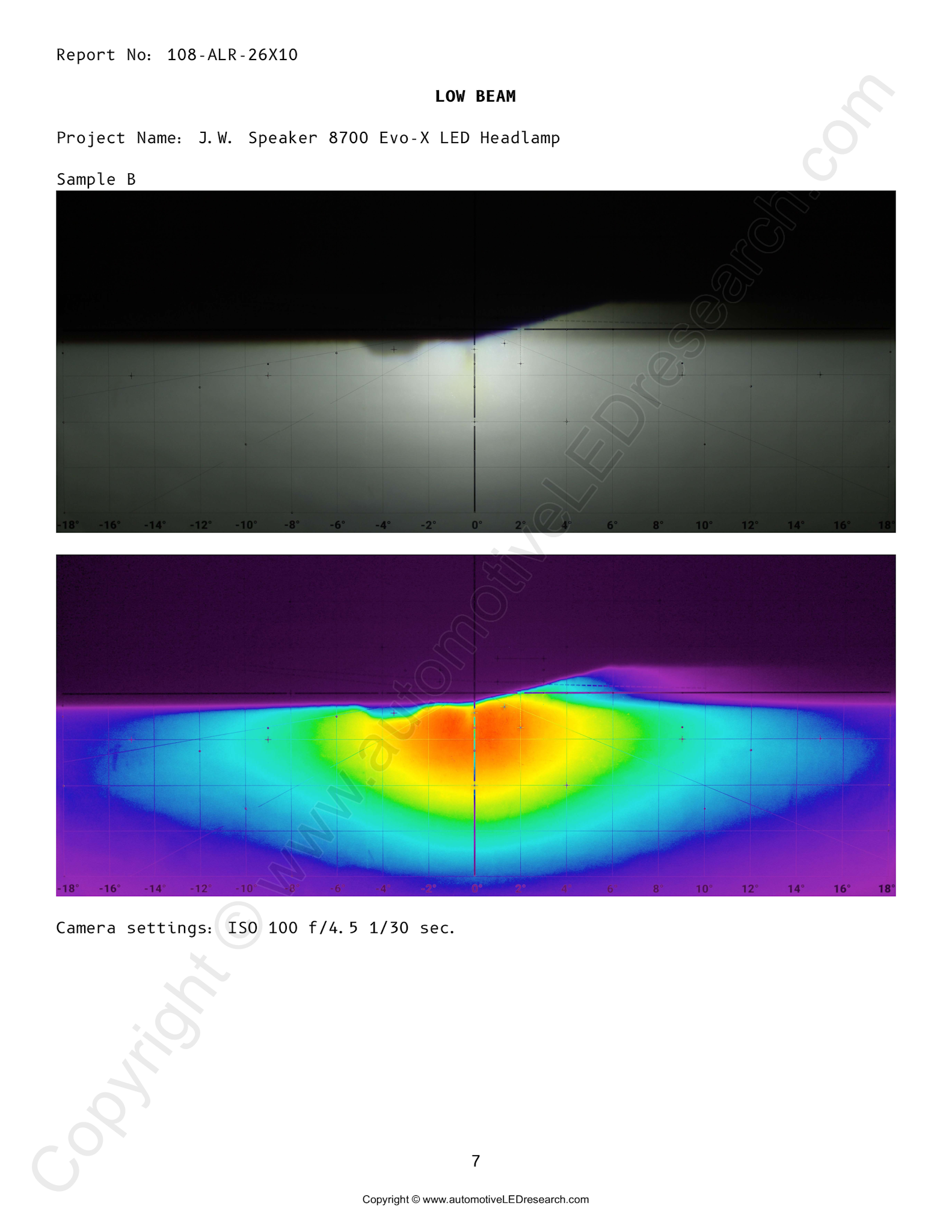

Both samples showed a small shadowed area near the center of the beam, just below the kink and left of the V-line, with a slight reduction in brightness.
📘 Frequently Asked Questions
If you want a deeper explanation of how the lamps were tested or how to interpret the photometric data, the two decks below cover the full process:
Part 1 – How Headlamps Are Tested
CLICK HERE
Part 2 – How to Read the Test Results
CLICK HERE

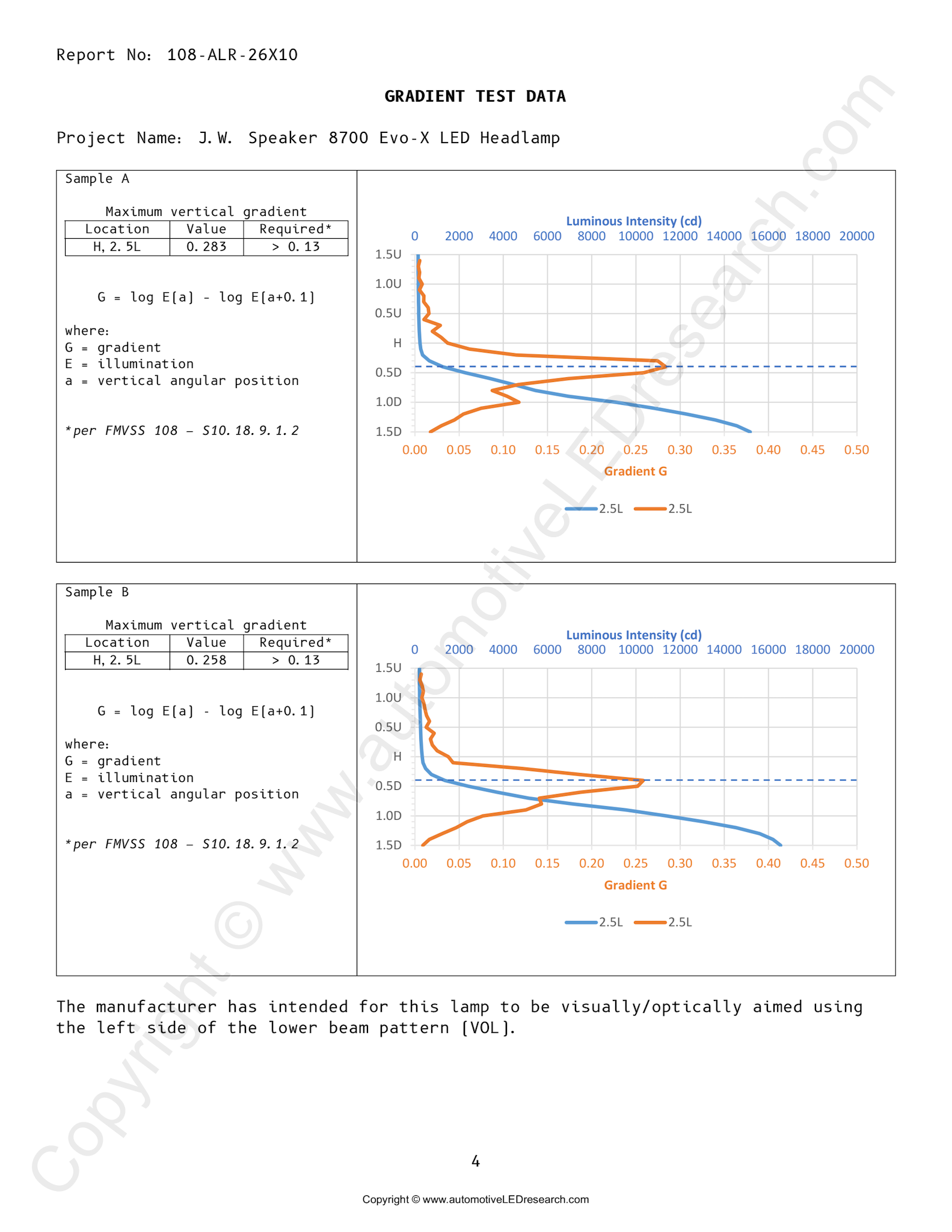

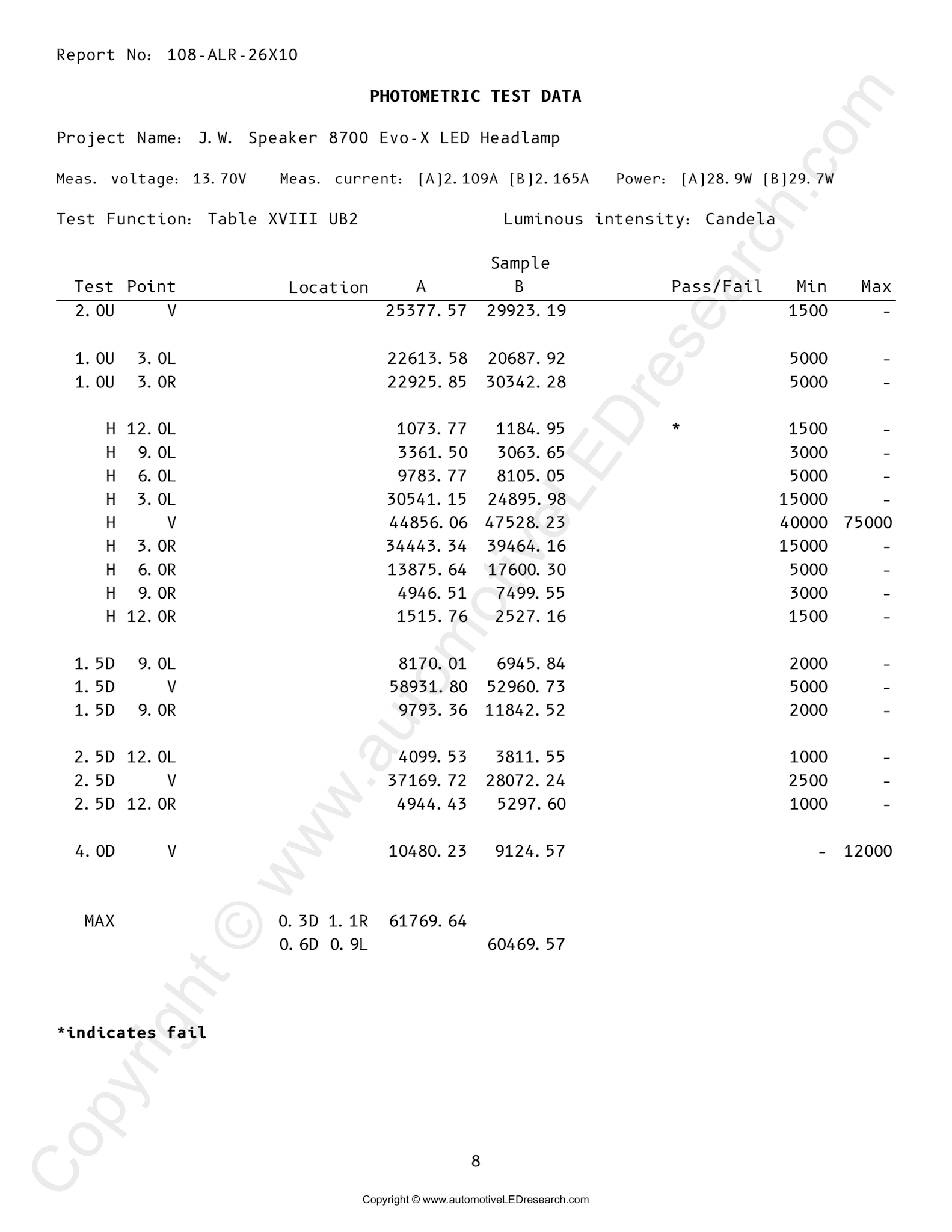

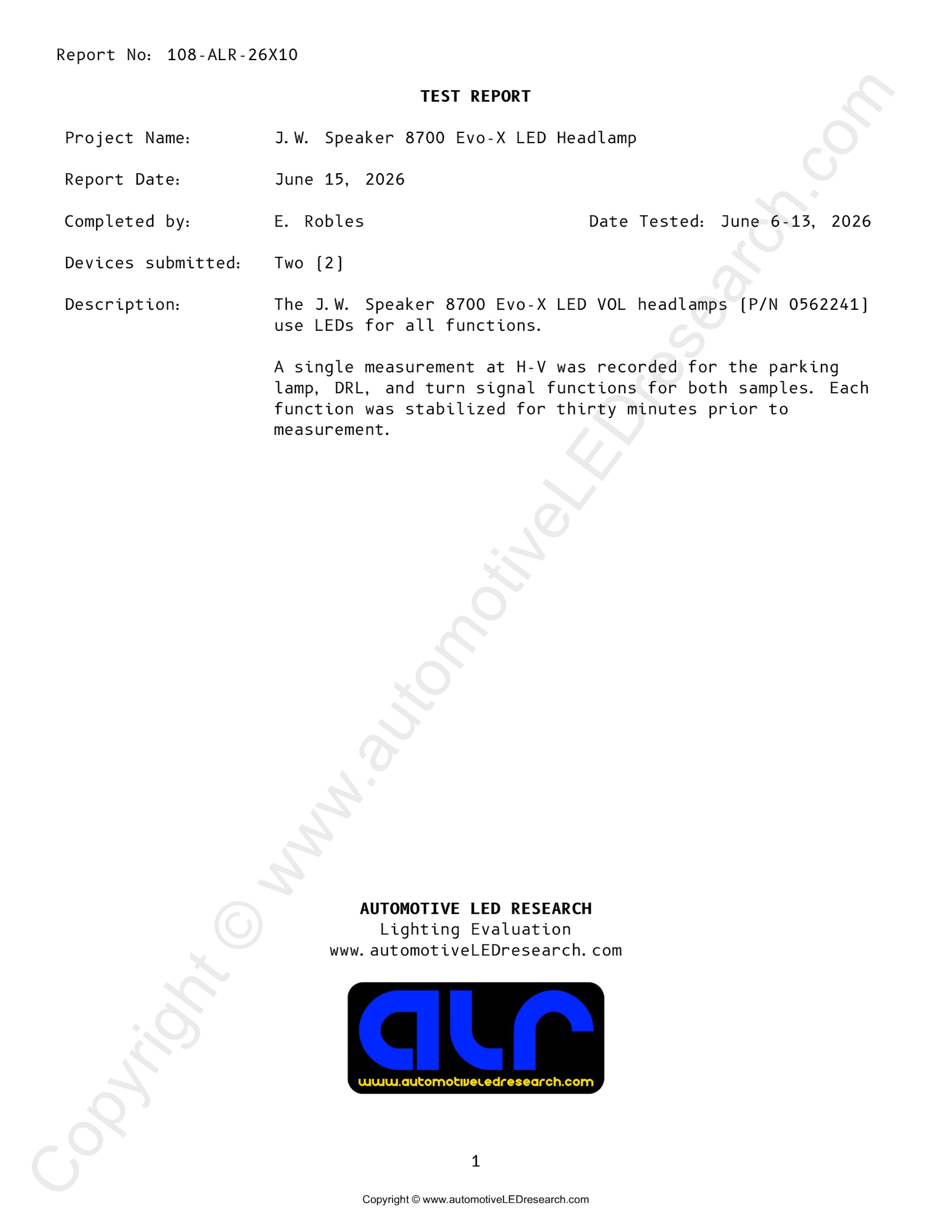

CLICK ON THE IMAGE BELOW to view the photometric test report
